This technical report provides a comprehensive evaluation of manganese phosphate coatings applied to 8620 and 9310 steel substrates, integrating data from Calico’s internal coating documentation and the ASTM B117 salt spray test performed externally. The purpose of this report is to assess coating performance in terms of thickness, uniformity, corrosion behavior, and expected functional performance with and without oil post-treatment.
Manganese phosphate (Mn-Phos) is widely utilized in the automotive, firearms, aerospace, and tooling industries due to its ability to enhance wear resistance, reduce friction, and retain lubricating oils. However, unlike zinc phosphate, manganese phosphate is not designed to provide standalone corrosion protection, especially in salt spray environments. This report contextualizes the observed corrosion results and explains coating performance in relation to the known behavior of Mn-Phos systems.
All samples were subjected to ASTM B117 Salt Spray (Fog) Testing for corrosion evaluation at two exposure durations:
All measured chamber parameters were within ASTM B117 compliance:
| Parameters | Observed Range | ASTM Requirements |
|---|---|---|
| Temperature | 94-95°F | 95°F ± 3°F |
| Air Pressure | 15 PSI | 12–18 PSI |
| Collection Rate | 1.79–1.91 ml/hr | 1–2 ml/hr |
| pH | 6.5 | 6.5-7.2 |
| Specific Gravity | 1.035–1.036 | 1.0255–1.040 |

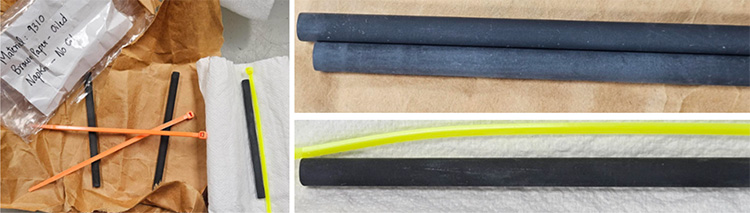

Image – Two pcs oiled (Orange), one pc not oiled (Yellow)

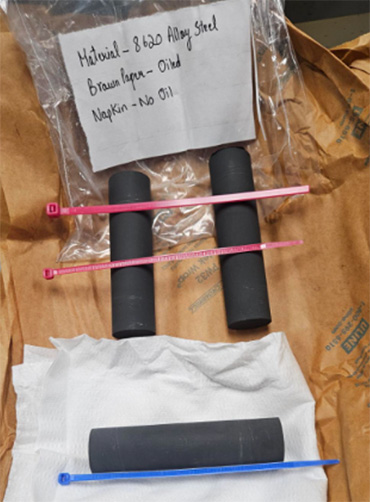

Image - Two pcs oiled (Pink), one pc not oiled (Blue)
The chamber conditions were stable and suitable for reproducible comparative testing.
Cross-sectional coating thickness measurements were taken on non-oiled samples for both steel grades.

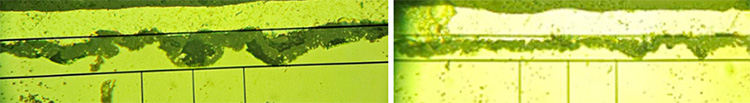

Image - 9310 Pictures of Coating Thickness
Image- 8620 Pictures of Coating Thickness
Typical manganese phosphate coatings exhibit thickness values in the range of:
All values fall comfortably within this accepted range. Thickness variations are expected due to:
No anomalies or failure indicators were observed in thickness results.
Oiled samples demonstrated:

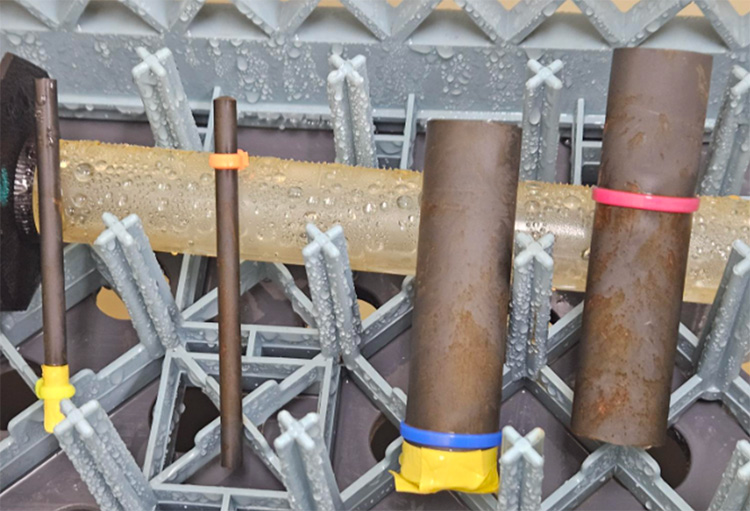

Image - Both Parts after 24 hours of Continuous B117 Salt Spray Testing

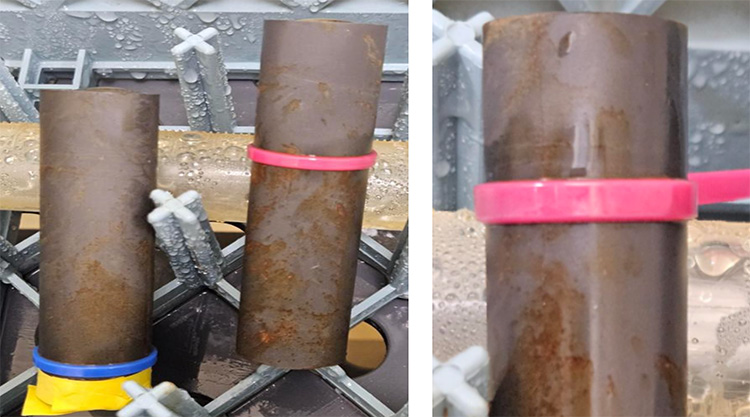

Image - Sectioned Non-Oiled part (BLUE) and Un-Sectioned Oiled part (PINK)
This behavior is expected, as the manganese phosphate structure is highly porous and designed to retain oil. The oil becomes the true corrosion barrier, while Mn-Phos acts as the carrier.
Non-oiled samples exhibited:
Rust initiation visible at 24 hours

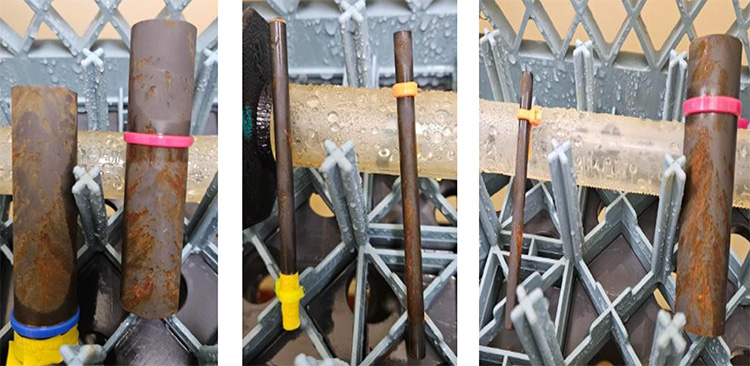

Image – Non-Oiled Parts After 24 Hours of Continuous B117 Salt Spray Testing
Significant corrosion by 48 hours on both alloys

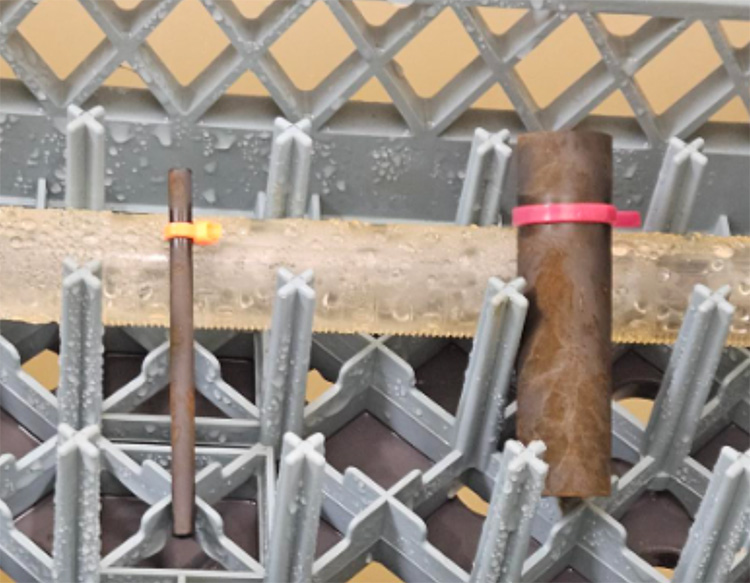

Image – Non-Oiled Parts After 24 Hours of Continuous B117 Salt Spray Testing

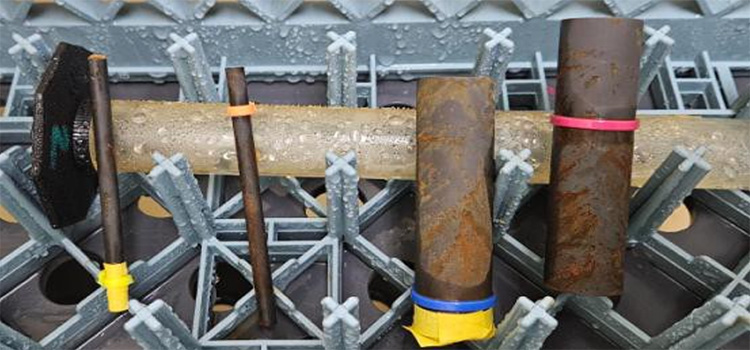

Image - Both Parts After 48 Hours of Continuous B117 Salt Spray Testing.
The corrosion performance reflects correct coating behavior—not coating failure.
Mn-Phos is engineered for:
Mn-Phos creates a porous crystalline matrix, enabling it to:
These pores also provide pathways for rapid corrosion when no oil is present. Thus, corrosion on bare Mn-Phos is expected and unavoidable.
The following indicators confirm a healthy coating process:
The manganese phosphate coatings applied to 8620 and 9310 steel parts exhibit normal and expected behavior consistent with industry standards.
Conclusions Supported by Data
The manganese phosphate coating line appears to be:
In addition to the controlled B117 salt-spray results, long-term field evidence confirms the coating's effectiveness: a production component coated using the same Mn-phosphate process has remained rust-free after more than one year in real operating conditions, validating both the coating chemistry and the oil-retention mechanism beyond laboratory testing.

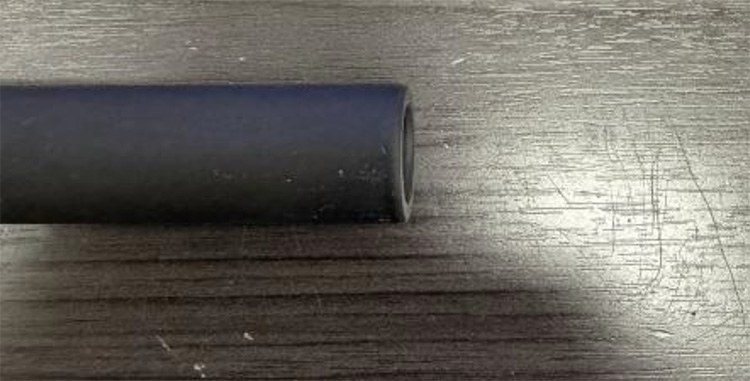

Image- Manganese Phosphate Coated Sample After One Year No Visible Corrosion Observed.
